CFM56-5 Turbofan Jet Engine ポスター

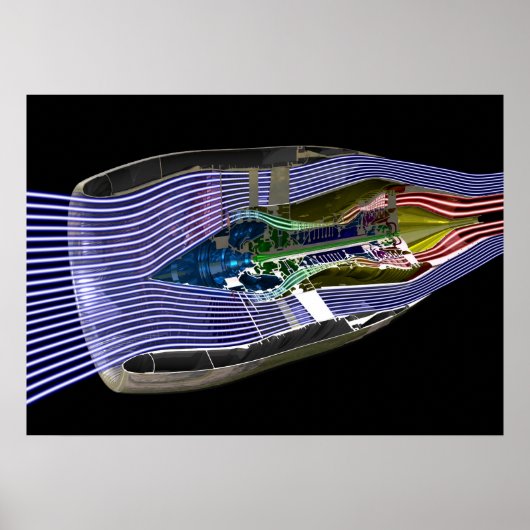

I saw this cool looking poster of a turbofan engine schematic and it inspired me to make a 3D rendering of it. This engine is used for the Airbus. The streamlines shown here are just for visual effect. In reality, the streamlines would be turbulent. The blue streamlines show where cold air enters and bypasses the engine (turbofans typically have a high bypass ratio). Green streamlines are shown through the compressor stages. The red streamlines show where hot gas exits the burners and turbine stage.
